Electrical

Connection of the GPS unit for the Tideland SolaMAX-65 lantern.

Connection applies to this GPS unit:

• NLI-VX10

Important - Always check the handover procedure to make sure the product is handed over according to the requirements.

Overview

The following must be connected:

• Supply voltage
• Signals
• GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data./GPS antenna

Mounting

The NLI-VX10 GPS unit and antenna are mounted below the Tideland OMNIBUS unit:

• The GPS-unit cable is stripped by at least 12 cm.

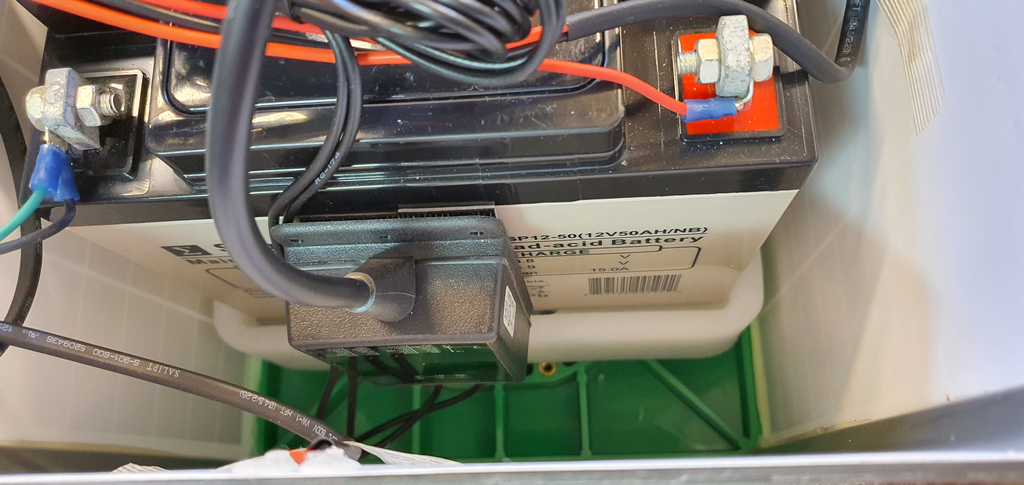

• The GPS unit is fastened with Velcro on the side of the battery as shown here.
• The antenna is mounted on the inside of the top module as shown here.

Supply Voltage and Signals

Connection of the supply cable and signals to the NLI-VX10 GPS unit:

• 8-36VDC supply voltage
• Fault-monitoring signal from OMNIBUS

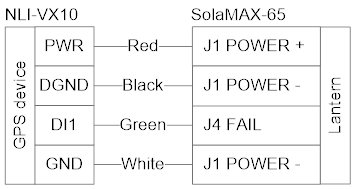

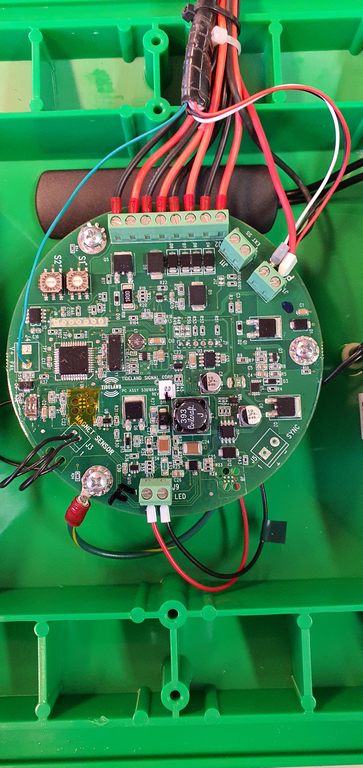

Wires are connected to the OMNIBUS unit as shown here.

Antenna

Connection of the antenna to the NLI-VX10 GPS unit:

• GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. - connect the connector from the GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. cable to the unit.
• GPS - connect the connector from the GPS cable to the unit.

Important - Check that the GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. and GPS connectors are mounted correctly and fastened.
