Electrical Installation

Connection of the OnSiteLight cabinet.



Connection applies to this model:

• OSL 6000-8-2 /D MBO



Important - Always check the handover procedure to ensure that the product is handed over according to requirements.

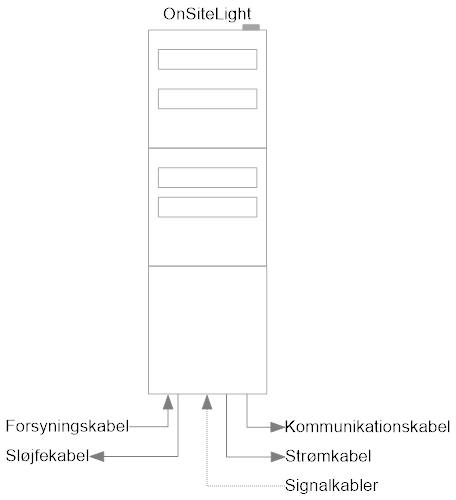

Overview

Connect:

• Supply cable to the cabinet and loop-through
• Power cable to lamps
• Communication cable to lamps
• Communication cable to external tag reader for operation (option)
• Signal cable to motion detector/lux meter (option)
• Signal cable to external control box (option)



Note - if there is more than one lamp, the communication cable and power cable must be branched out after the cabinet



Supply Cable

Connection of the supply cable to the OnSiteLight cabinet with loop-through option.



Supply cable:

• The maximum cross-section for the supply cable/loop-through cable is shown here



Power Cable

Connection of the power cable between the OnSiteLight cabinet and lamps.



Power cable:

• Maximum recommended length is 100 meters
• The recommended power cable is shown here



Note - if there is more than one lamp, the power cable must be branched out after the cabinet

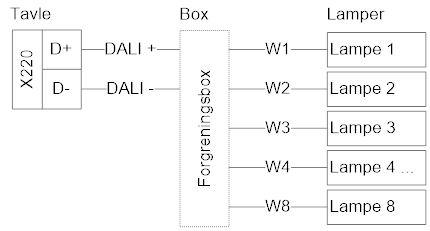

Communication Cable To Lamps

Connection of the communication cable between the OnSiteLight cabinet and DALIDALI (Digital Addressable Lighting Interface) is a standardized digital protocol for lighting control. lamps.



Communication cable:

• The maximum recommended length is shown here
• The recommended communication cable is shown here



Note - if there is more than one lamp, the communication cable must be branched out after the cabinet

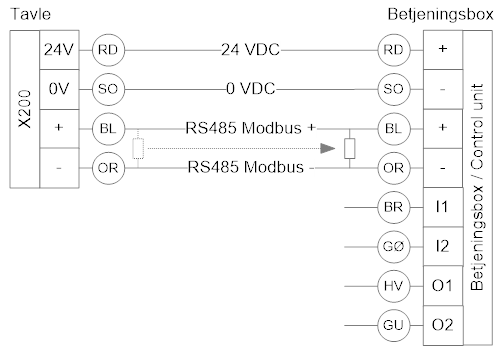

Communication Cable To Tag Reader

Connection of the communication cable between the OnSiteLight cabinet and aKeyaKey is a key fob reader for RFID cards, tags, and similar access media. tag reader.



Communication cable:

• The maximum recommended length is shown here
• The recommended communication cable is shown here



Note - the external tag reader is an option



Signal Cable - Motion Detector/Lux Meter

Connection of the signal cable between the OnSiteLight cabinet and motion detector/lux meter.



Signal cable:

• Maximum recommended length is 100 meters
• The recommended signal cable is shown here



Note - the motion detector/lux meter is an option

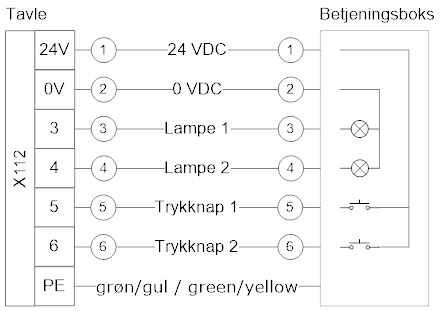

Signal Cable - External Push Button For Operation

Connection of the signal cable between the OnSiteLight cabinet and external control box.



Signal cable:

• Maximum recommended length is 100 meters
• The recommended signal cable is shown here



Note - the external control box is an option
