Electrical Installation

Connection of the OnSiteLight 900 series.

Connection applies to these models:

• OSL-VX900-1

• OSL-IX900-1

Note that outputs can be assigned to different lighting levels depending on the selected coupling principle

Overview

Connect:

• Power supply
• Handover relays

Power Supply And Outputs

The unit is connected to 230 VAC:

• Max. upstream fuse 10 A

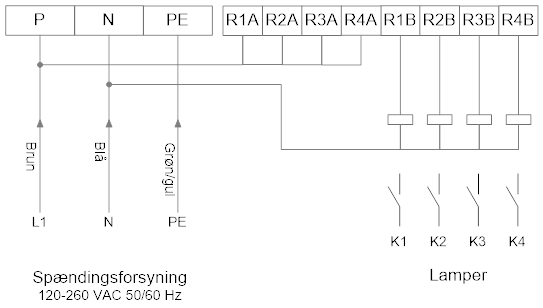

The unit outputs are potential-free relays:

• Connection max. 5 A at 230 V
• Handover relays are recommended as shown in the drawing

Note that outputs are controlled by the selected program and the current setup.
