Inductive CANbus reader

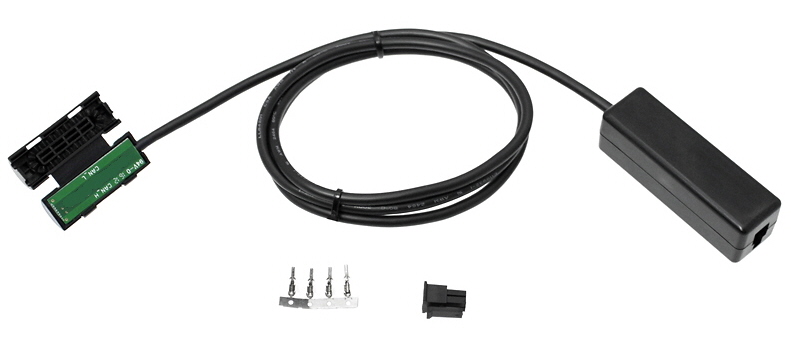

Inductive CANbus reader for reading CANbus signals without physical contact on the bus.

• Item numberItem number used when ordering from Vikingegaarden A/S.: 1000925







Recommended for:

• Reading CANbus signals without physical intervention on the bus



Application:

• Electric cars, trucks, agricultural machines, buses, etc.



Technical:

• Weight: 25 gram
• Reader length: 40 mm
• Reader diameter: 14 mm
• Cable length: 1 m

• Ingress protection: IP 68

• Storage temperature range: -40 to 90 °C
• Operating temperature range: -40 to 85 °C
• CANbus wire maximum cross-section: 0.75 mm²



Electrical:

• Supply voltage: 8-40 VDC
• CANbus: Normal 7-12V, Max 40V
• Consumption: Min/Normal/Max ~ 12/16/30 mA



Connector:

• Molex connector housing, 4-pole (Molex item number: 43025-0400)
• Molex crimp terminal contact, Micro-Fit, 0.75 mm² (Molex item number: 43030-0038)



Tools:

• Crimping tool for terminal contacts (Molex item number: 64016-0201)
• Extraction tool for terminal contacts (Molex item number: 11-03-0043)



Approvals:

• 72/245/EEC
• SAE J1939
• ISO 11783
• ISO 11992
• ISO 9141
• ISO 11898
• ISO 7637
• WEE
• RoHs

Mounting

Mounting the inductive CANbus reader.

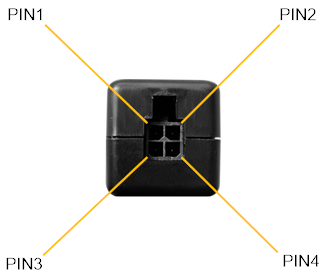

Connection Supply voltage and CANbus signals are connected to the box: PIN1: Plus, 8-40 VDC PIN2: Minus, 8-40 VDC PIN3: CAN_L (low) PIN4: CAN_H (High)   Note - the mounting box must be used and must not be removed
Connector Terminal contacts are mounted on wires: One terminal contact is mounted on each of the 4 wires Each wire is pushed into the housing as shown in the drawing above until a click is heard   Note - the extraction tool must be used if the terminal contact must be removed from the connector

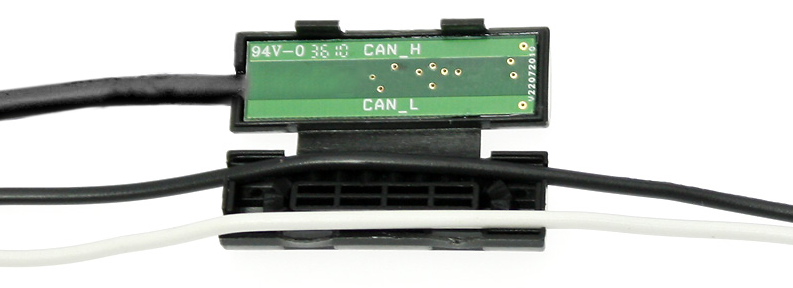

CANbus CANbus wires are mounted as shown in the drawing: CAN_H and CAN_L wires are fastened in their own grooves The reader is closed   Note - it is important that CANbus wires are mounted correctly in relation to CANbus high and low
