Marinella Models

The MarinellaProPower Marinella is a service pedestal with electricity and water outlets for marinas. supply pedestal series includes models with and without consumption billing, payment system options, and retrofit kits for existing supply pedestals.

MarinellaProPower Marinella is a service pedestal with electricity and water outlets for marinas. overview

The overview shows the range of Marinella supply pedestals.

Series	Model	CEE power outlets	EV charging outlets	Water outlets	Top light	Consumption billingBilling based on registered electricity, water, or heat consumption.	Payment systemSystem used for payment of consumption, for example by credit card or MobilePay.	Emiko App control	DoubleDoubleA set consisting of 2 supply pedestals connected together
MAL-C	Classic	●	-	●	●	-	-	-	-
MAL-CP	Classic	●	-	●	●	●	●	●	-
MAL-Q	Quantum	●	-	●	●	-	-	-	-
MAL-QP		●	-	●	●	●	●	●	-
MAL-QPD		●	-	-	●	●	●	●	●
MAL-QC		-	●	-	●	-	-	-	-
MAL-QPC		-	●	-	●	●	●	●	-
MAL-QPU	Retrofit kit	●	-	●	●	●	●	●	-

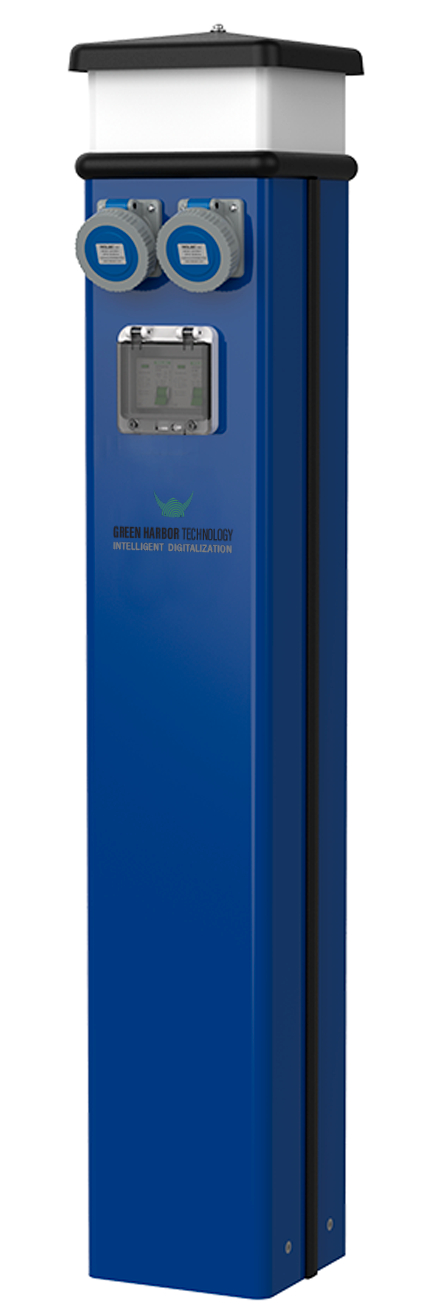

MarinellaProPower Marinella is a service pedestal with electricity and water outlets for marinas. supply pedestal Vexillum

Supply pedestal without consumption billing. Used where everyone must be able to connect to electricity and water.

CEE power outlets without an energy meter
Water outlets without a water meter
Locally controlled LED top light that switches on in the dark

Item	Type designation	Series	Model	Connection	CEE power outlets	Top light	Consumption billingBilling based on registered electricity, water, or heat consumption.	Operation	Payment systemSystem used for payment of consumption, for example by credit card or MobilePay.	Water outlets	Example
	MAL 16-1 C	MAL-C	Classic	400V, 3F, 16A	2 x 230V, 16A	Yes	No	Manual	No	Optional
	MAL 16-2 C			400V, 3F, 16A	4 x 230V, 16A
1005119	MAL 32-1 C			400V, 3F, 32A	6 x 230V, 16A
	MAL 32-2 C			400V, 3F, 32A	8 x 230V, 16A					-
	MAL 32-3 C			400V, 3F, 32A	2 x 230V, 16A + 2 x 400V, 16A					Optional
	MAL 32-4 C			400V, 3F, 32A	3 x 230V, 16A + 1 x 400V, 16A
	MAL 63-1 C			400V, 3F, 63A	4 x 230V, 16A + 2 x 400V, 16A
	MAL 63-2 C			400V, 3F, 63A	3 x 230V, 16A + 1 x 400V, 32A
	MAL 63-3 C			400V, 3F, 63A	5 x 230V, 16A + 1 x 400V, 32A
1005086	MAL 16-1 Q	MAL-Q	Quantum	400V, 3F, 16A	2 x 230V, 16A
1005087	MAL 16-2 Q			400V, 3F, 16A	4 x 230V, 16A
1005088	MAL 32-1 Q			400V, 3F, 32A	6 x 230V, 16A
1005089	MAL 32-2 Q			400V, 3F, 32A	8 x 230V, 16A					-
1005090	MAL 32-3 Q			400V, 3F, 32A	2 x 230V, 16A + 2 x 400V, 16A					Optional
1005091	MAL 32-4 Q			400V, 3F, 32A	3 x 230V, 16A + 1 x 400V, 16A
1005092	MAL 63-1 Q			400V, 3F, 63A	4 x 230V, 16A + 2 x 400V, 16A
1005093	MAL 63-2 Q			400V, 3F, 63A	3 x 230V, 16A + 1 x 400V, 32A
1005094	MAL 63-3 Q			400V, 3F, 63A	5 x 230V, 16A + 1 x 400V, 32A
1005158	MAL 63-4 Q			400V, 3F, 63A	2 x 230V, 16A + 2 x 400V, 32A
1005159	MAL 63-5 Q			400V, 3F, 63A	2 x 230V, 16A + 1 x 400V, 16A + 1 x 400V, 32A

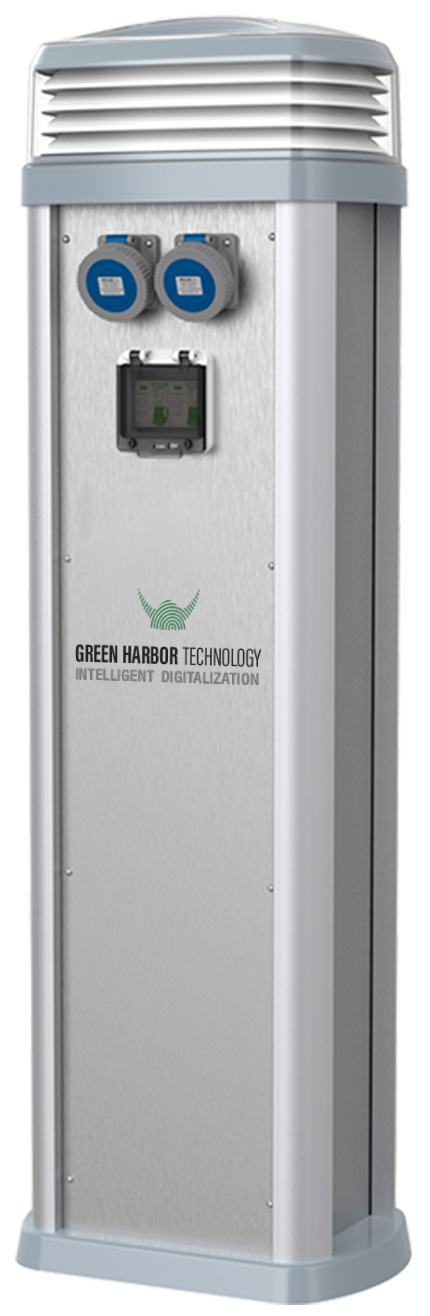

MarinellaProPower Marinella is a service pedestal with electricity and water outlets for marinas. supply pedestal UNA IoTIoT (Internet of Things) is a connected network of devices and systems that exchange data over the internet.

Single supply pedestal with consumption billing and payment system. Used where consumption must be registered.

Consumption billingBilling based on registered electricity, water, or heat consumption. of electricity usage with an energy meter
Consumption billingBilling based on registered electricity, water, or heat consumption. of water usage with a water meter
Locally controlled LED top light that switches on in the dark
Operation and consumption history in the ProPowerWeb-based IoT system for controlling ProPower equipment and registering consumption data. App
Pay with the PROPAYUse PROPAY to pay for consumption by credit card or MobilePay. online payment system using credit card or MobilePay
The UNA series requires a ProPowerWeb-based IoT system for controlling ProPower equipment and registering consumption data. Cloud accountCloud account used for ProPower equipment.

Item	Type designation	Series	Model	Connection	CEE power outlets	Top light	Consumption billingBilling based on registered electricity, water, or heat consumption.	Operation	Payment systemSystem used for payment of consumption, for example by credit card or MobilePay.	Water outlets	Example
1005099	MAL 16-1 QP	MAL-QP	Quantum	400V, 3F, 16A	2 x 230V, 16A	Yes	Yes	Emiko App	Optional PROPAYUse PROPAY to pay for consumption by credit card or MobilePay.	Optional
1005100	MAL 16-2 QP			400V, 3F, 16A	4 x 230V, 16A
1005101	MAL 32-1 QP			400V, 3F, 32A	6 x 230V, 16A
1005102	MAL 32-2 QP			400V, 3F, 32A	8 x 230V, 16A					-
1005103	MAL 32-3 QP			400V, 3F, 32A	2 x 230V, 16A + 2 x 400V, 16A					Optional
1005104	MAL 32-4 QP			400V, 3F, 32A	3 x 230V, 16A + 1 x 400V, 16A
1005105	MAL 63-1 QP			400V, 3F, 63A	4 x 230V, 16A + 2 x 400V, 16A
1005106	MAL 63-2 QP			400V, 3F, 63A	3 x 230V, 16A + 1 x 400V, 32A
1005107	MAL 63-3 QP			400V, 3F, 63A	5 x 230V, 16A + 1 x 400V, 32A
1005155	MAL 63-4 QP			400V, 3F, 63A	2 x 230V, 16A + 2 x 400V, 32A
1005156	MAL 63-5 QP			400V, 3F, 63A	2 x 230V, 16A + 1 x 400V, 16A + 1 x 400V, 32A

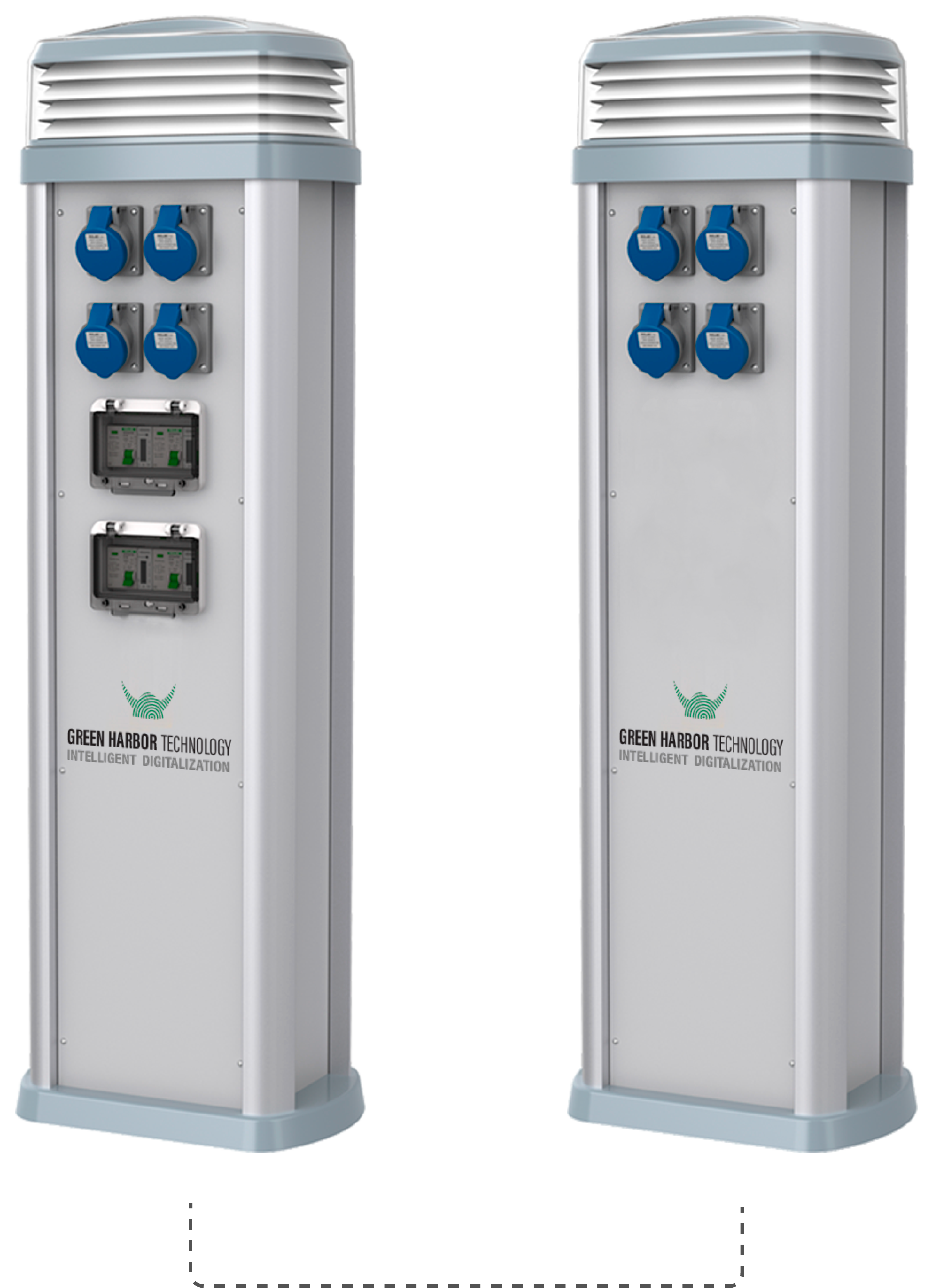

MarinellaProPower Marinella is a service pedestal with electricity and water outlets for marinas. supply pedestal Duplici IoTIoT (Internet of Things) is a connected network of devices and systems that exchange data over the internet.

Double supply pedestal with consumption billing and payment system. Used where consumption must be registered and where 2 pedestals are needed side by side.

Pedestal 1 is the primary unit and controls the secondary unit
Consumption billingBilling based on registered electricity, water, or heat consumption. of electricity usage with an energy meter
Consumption billingBilling based on registered electricity, water, or heat consumption. of water usage with a water meter
Locally controlled LED top light that switches on in the dark
Operation and consumption history in the ProPowerWeb-based IoT system for controlling ProPower equipment and registering consumption data. App
Pay with the PROPAYUse PROPAY to pay for consumption by credit card or MobilePay. online payment system using credit card or MobilePay
The Duplici series requires a ProPowerWeb-based IoT system for controlling ProPower equipment and registering consumption data. Cloud accountCloud account used for ProPower equipment.

Item	Type designation	Series	Model	Connection	CEE power outlets in each pedestal	Top light	Consumption billingBilling based on registered electricity, water, or heat consumption.	Operation	Payment systemSystem used for payment of consumption, for example by credit card or MobilePay.	Water outlets	Example
	MAL 16-1 QPD	MAL-QPD	Quantum	2 // 400V, 3F, 16A	2 // 2 x 230V, 16A	Yes	Yes	Emiko App	Optional PROPAYUse PROPAY to pay for consumption by credit card or MobilePay.	No
	MAL 16-2 QPD			2 // 400V, 3F, 16A	2 // 4 x 230V, 16A
	MAL 32-3 QPD			2 // 400V, 3F, 32A	2 // 2 x 230V, 16A + 2 x 400V, 16A
	MAL 32-4 QPD			2 // 400V, 3F, 32A	2 // 3 x 230V, 16A + 1 x 400V, 16A
	MAL 63-2 QPD			2 // 400V, 3F, 63A	2 // 3 x 230V, 16A + 1 x 400V, 32A
	MAL 63-4 QPD			2 // 400V, 3F, 63A	2 // 2 x 230V, 16A + 2 x 400V, 32A
	MAL 63-5 QPD			2 // 400V, 3F, 63A	2 // 2 x 230V, 16A + 1 x 400V, 16A + 1 x 400V, 32A

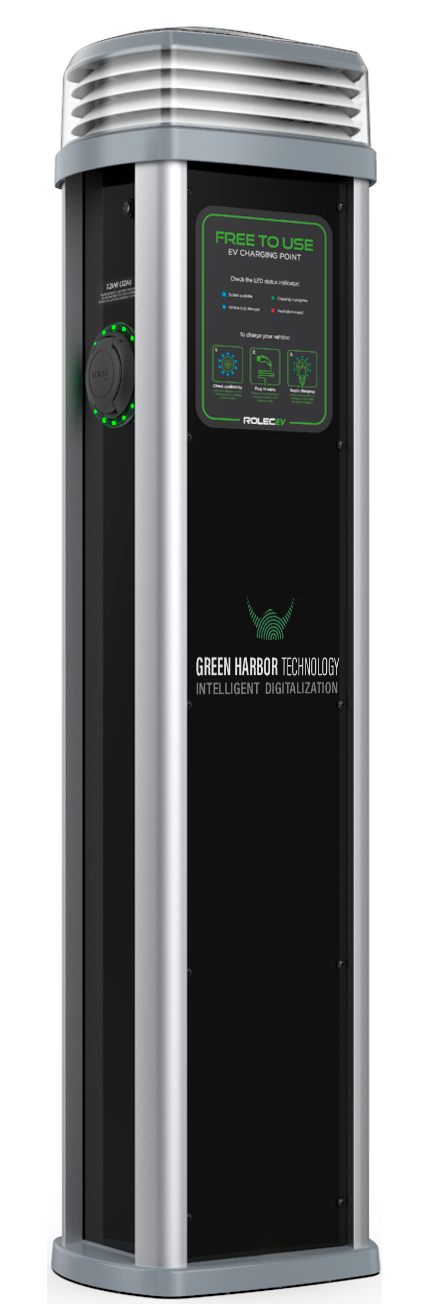

MarinellaProPower Marinella is a service pedestal with electricity and water outlets for marinas. supply pedestal Patine

Supply pedestal for charging electric vehicles. Used where EV charging is needed without consumption registration.

EV charging outlets without an energy meter
Locally controlled LED top light that switches on in the dark

Item	Type designation	Series	Model	Connection	EV charging outlet	Top light	Consumption billingBilling based on registered electricity, water, or heat consumption.	Operation	Payment systemSystem used for payment of consumption, for example by credit card or MobilePay.	Water outlets	Example
1005182	MAL 16-1 QC	MAL-QC	Quantum	400V, 3F, 16A	1 x 11 kW, Type 2	Yes	No	Manual	No	No
1005183	MAL 32-1 QC			400V, 3F, 32A	2 x 11 kW, Type 2
1005184	MAL 32-2 QC			400V, 3F, 32A	1 x 22 kW, Type 2
1005185	MAL 63-2 QC			400V, 3F, 63A	2 x 22 kW, Type 2

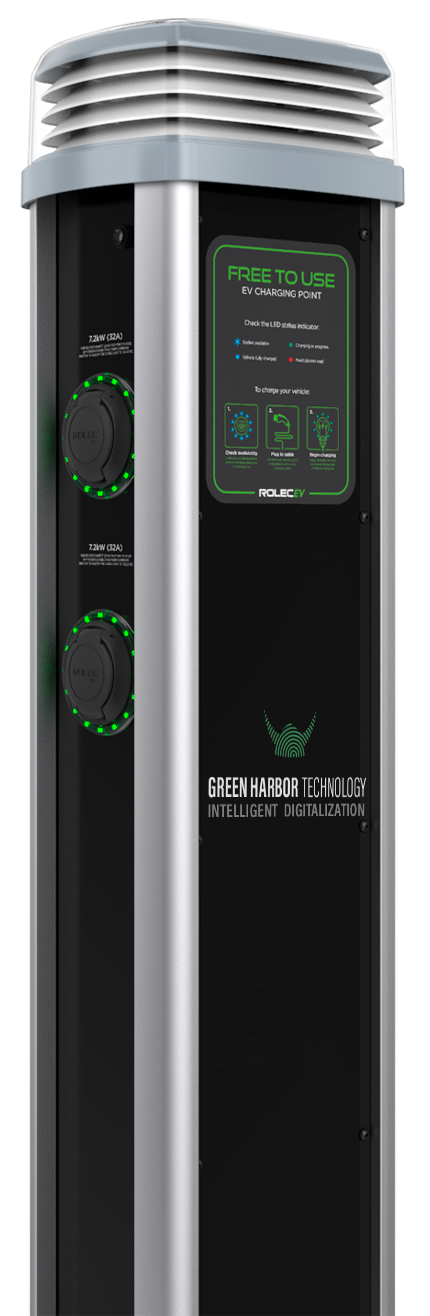

MarinellaProPower Marinella is a service pedestal with electricity and water outlets for marinas. supply pedestal Patine IoTIoT (Internet of Things) is a connected network of devices and systems that exchange data over the internet.

Supply pedestal with consumption billing and payment system for EV charging. Used where EV charging with consumption registration is required.

Consumption billingBilling based on registered electricity, water, or heat consumption. of electricity usage with an energy meter
Locally controlled LED top light that switches on in the dark
Operation and consumption history in the ProPowerWeb-based IoT system for controlling ProPower equipment and registering consumption data. App
Pay with the PROPAYUse PROPAY to pay for consumption by credit card or MobilePay. online payment system using credit card or MobilePay
The Patine series requires a ProPowerWeb-based IoT system for controlling ProPower equipment and registering consumption data. Cloud accountCloud account used for ProPower equipment.

Item	Type designation	Series	Model	Connection	EV charging outlet	Top light	Consumption billingBilling based on registered electricity, water, or heat consumption.	Operation	Payment systemSystem used for payment of consumption, for example by credit card or MobilePay.	Water outlets	Example
1005186	MAL 16-1 QPC	MAL-QPC	Quantum	400V, 3F, 16A	1 x 11 kW, Type 2	Yes	Yes	Emiko App	Optional PROPAYUse PROPAY to pay for consumption by credit card or MobilePay.	No
1005187	MAL 32-1 QPC			400V, 3F, 32A	2 x 11 kW, Type 2
1005188	MAL 32-2 QPC			400V, 3F, 32A	1 x 22 kW, Type 2
1005189	MAL 63-2 QPC			400V, 3F, 63A	2 x 22 kW, Type 2

MarinellaProPower Marinella is a service pedestal with electricity and water outlets for marinas. retrofit kit Constructum

Complete retrofit kit for upgrading existing pedestals.

Build your own supply pedestal or upgrade an existing unit for Emiko-connected operation with or without a payment system
Complete retrofit kit with the same functions and operating principle as fully built supply pedestals
Compatible with the Emiko Platform and the Emiko App
Retrofit kits include:
- 1 x GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. controller incl. SIM card
- 1 x GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. antenna, 0.8 m
- 1 x power supply, 230 V / 24 VDC
- 1 x termination resistor for ModbusModbus is a serial communication protocol used with devices such as water meters and energy meters.
- For each power outlet:
  - 1 x MIDMID refers to Measuring Instruments Directive certification for approved measuring instruments and manufacturer quality systems.-approved energy meter with ModbusModbus is a serial communication protocol used with devices such as water meters and energy meters.
  - 1 x installation contactor
  - 1 x built-in CEE power outlet with contact registration for inserted plugs (switches off when the plug is removed)
Other components are expected to be reusable:
- Pedestal, fuses, protection equipment (RCD/MCB), terminals, lighting, wiring, etc.
The retrofit kit requires a ProPowerWeb-based IoT system for controlling ProPower equipment and registering consumption data. Cloud accountCloud account used for ProPower equipment.

Item	Type designation	Series	Model	Connection	Components for	Top light	Consumption billingBilling based on registered electricity, water, or heat consumption.	Operation	Payment systemSystem used for payment of consumption, for example by credit card or MobilePay.	Water outlets	Image
1005140	MAL 16-1 QPU	MAL-QPU	-	400V, 3F, 16A	2 x 230V, 16A	-	Yes	Emiko App	Optional PROPAYUse PROPAY to pay for consumption by credit card or MobilePay.	Optional
1005141	MAL 16-2 QPU			400V, 3F, 16A	4 x 230V, 16A					Optional
1005142	MAL 32-1 QPU			400V, 3F, 32A	6 x 230V, 16A					Optional
1005143	MAL 32-2 QPU			400V, 3F, 32A	8 x 230V, 16A					-
1005144	MAL 32-3 QPU			400V, 3F, 32A	2 x 230V, 16A + 2 x 400V, 16A					Optional
1005145	MAL 32-4 QPU			400V, 3F, 32A	3 x 230V, 16A + 1 x 400V, 16A					Optional
1005146	MAL 63-1 QPU			400V, 3F, 63A	4 x 230V, 16A + 2 x 400V, 16A					Optional
1005147	MAL 63-2 QPU			400V, 3F, 63A	3 x 230V, 16A + 1 x 400V, 32A					Optional
1005148	MAL 63-3 QPU			400V, 3F, 63A	5 x 230V, 16A + 1 x 400V, 32A					Optional
1005149	MAL 63-4 QPU			400V, 3F, 63A	2 x 230V, 16A + 2 x 400V, 32A					Optional
1005168	MAL 63-5 QPU			400V, 3F, 63A	2 x 230V, 16A + 1 x 400V, 16A + 1 x 400V, 32A					Optional
