WaterStation DN80-X SA /B Electrical Installation

Connection of WaterStation wells and accessories.

Connection applies to the following models:

• WAS DN80-1 SA /B TIN
• WAS DN80-2 SA /B TIN
• WAS DN80-3 SA /B TIN
• WAS DN80-3 SA /B /H TIN

Important - Always check the handover procedure to ensure that the product is handed over according to the requirements.

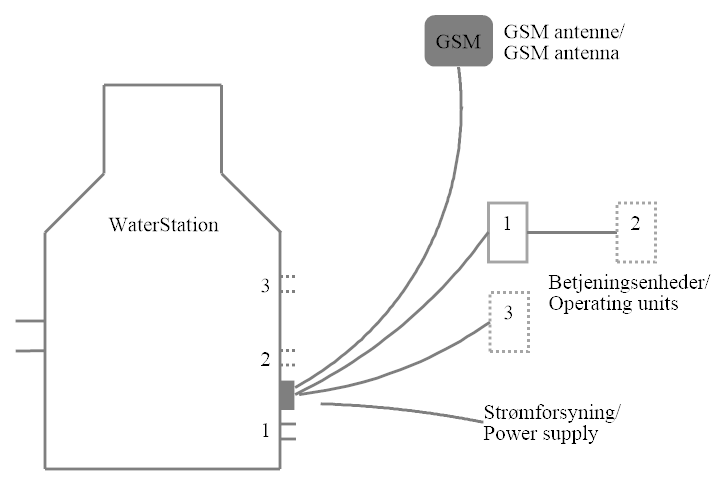

Overview

The following must be connected:

• Power supply
• Communication cable for one or more control units
• GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. antenna

Power Supply

The supply cable is routed through the cable gland in the side:

• Voltage 230V AC
• Fuse max. 10A

Important - Check that the cable gland on WaterStation is tightened and seals around the cable so the penetration is watertight.

Control Box

The communication cable is routed through the cable gland in the side:

• For each water outletOutlet where water can be drawn from the equipment., a control unit must be connected and installed.

• Alternatively, one control unit can be used for several water outletsOutlet where water can be drawn from the equipment.. See settings for more information.

Termination:

• When a control box is installed, the 120 ohm resistor must be removed from the connection point:
  • In WaterStation, the 120 ohm resistor must be removed.
  • In the control box, the 120 ohm resistor must be installed:
    • Note that only one resistor must be installed on the last control box, or on the control box if there is only one.
  • The recommended termination method listed here must be followed.
  • The recommended resistor listed here must be used.

Communication cable:

• The maximum communication-cable length from WaterStation to the outermost control box is 600 metres.
• The recommended communication cable listed here must be used.

Important - Check that the cable gland on WaterStation is tightened and seals around the cable so the penetration is watertight.

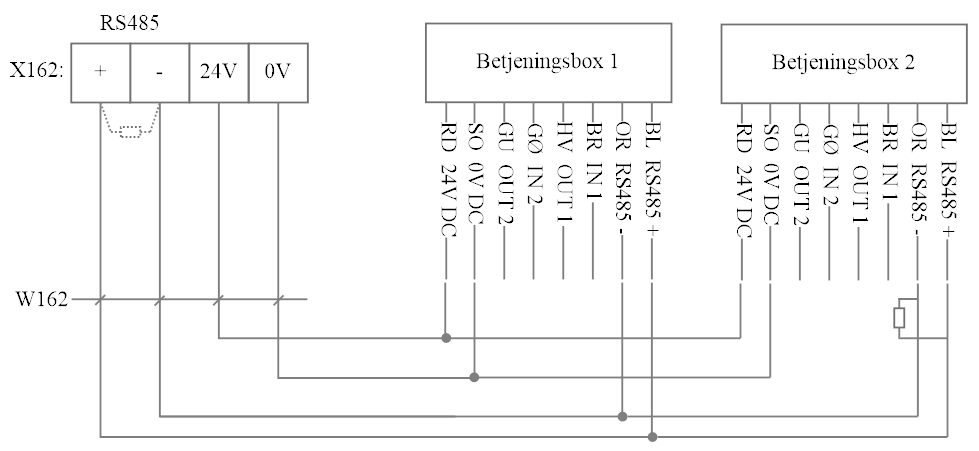

RS485 1 - Control Box Connection

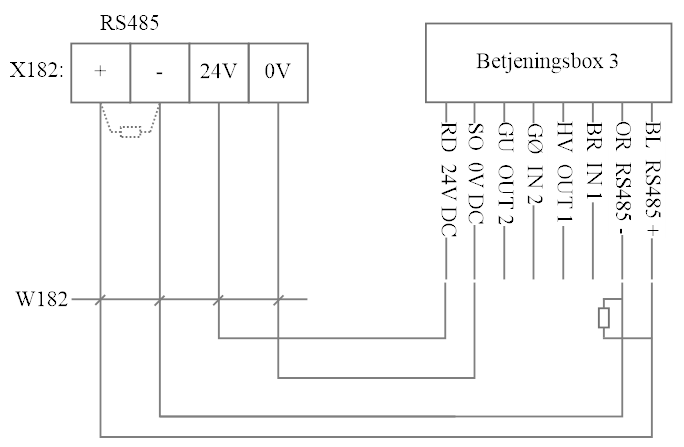

RS485 2 - Control Box Connection

GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. Antenna

The GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. cable is routed through the cable gland in the side:

• The GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. connector is routed into the cabinet inside the well and screwed onto the VikMoteController with built-in GSM and data logger. unit.
• The GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. antenna must be placed outside the well and above ground level.
• If the GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. cable is used underground, it must be routed in conduit.

Important - Check that the cable gland on WaterStation is tightened and seals around the cable so the penetration is watertight.

Control Box Details

Documentation for the control box.
