WaterStation Plumbing Installation

Connection of WaterStation and accessories.

Important - Always check the handover procedure to ensure that the product is handed over according to the requirements.

Connection applies to the following models:

• WAS DN80-1 SEP /S TIN
• WAS DN65-1 SEP /S TIN
• WAS DN80-1 SEP /B TIN
• WAS DN80-1 SA /B TIN
• WAS DN80-2 SA /B TIN
• WAS DN80-3 SA /B TIN
• WAS DN80-3 SA /B /H TIN

Water Supply

WaterStation must be connected to the water supply:

• One water supply must be connected for each WaterStation.
• See specifications for dimensions.

Note - It is recommended to install a shut-off valve on the supply side.

Water Outlet

WaterStation dispensing.

• A WaterStation can have one or more outlets for dispensing.
• Each outlet has measured water consumption and is routed to a dispensing point where customers can electronically open and close the water.
• See specifications for dimensions.

Connection to Well

WaterStation must be connected to the water supply and to the dispensing outlets.

• The water supply is connected in the side of the well, and the dispensing outlets are connected on the opposite side.
• A WaterStation can have one or more outlets for dispensing.
• Each outlet has measured water consumption and is routed to a dispensing point where customers can electronically open and close the water.
• See specifications for dimensions.

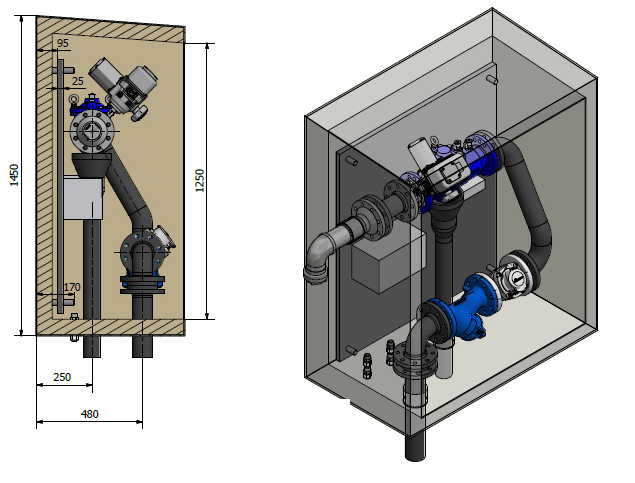

Connection to Cabinet

WaterStation must be connected to the water supply. The dispensing outlet is fixed to the side of the cabinet.

• The water supply is connected in the bottom of the cabinet.
• See specifications for dimensions.

TBSBackflow prevention valve that prevents water from flowing back into the waterworks supply line and helps protect drinking water from contamination. valve:

• The TBSBackflow prevention valve that prevents water from flowing back into the waterworks supply line and helps protect drinking water from contamination. outlet is intended to open and lead the liquid out to the surface.
• The TBSBackflow prevention valve that prevents water from flowing back into the waterworks supply line and helps protect drinking water from contamination. outlet can be extended, but there must be no resistance or shut-off mechanisms that can block the TBSBackflow prevention valve that prevents water from flowing back into the waterworks supply line and helps protect drinking water from contamination. drain.
• If the TBSBackflow prevention valve that prevents water from flowing back into the waterworks supply line and helps protect drinking water from contamination. valve opens, the liquid is led out of the chamber or cabinet. Due to the design of the TBSBackflow prevention valve that prevents water from flowing back into the waterworks supply line and helps protect drinking water from contamination. valve, there is no guarantee that liquid overflow cannot occur inside the chamber or cabinet.
