FlexGylle wiring diagram

Connection of FlexGylle with 230V or with 12V from a solar panel.

Note - It is important that the level meter pressure equalization tube can breathe freely through, for example, a vent membrane.

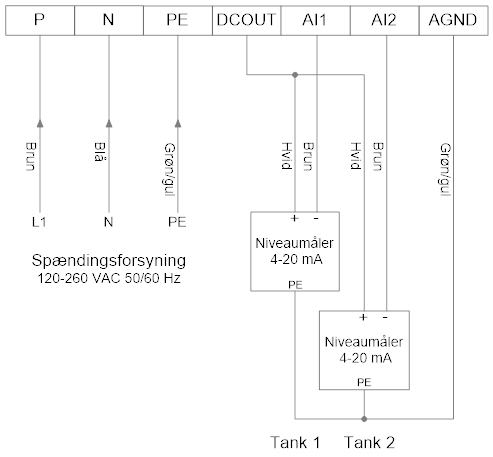

VikMoteController with built-in GSM and data logger. VX90 - 230V

Connection with 230V.

• Connect the 230V power supply
• Connect the level meter from one or two tanks

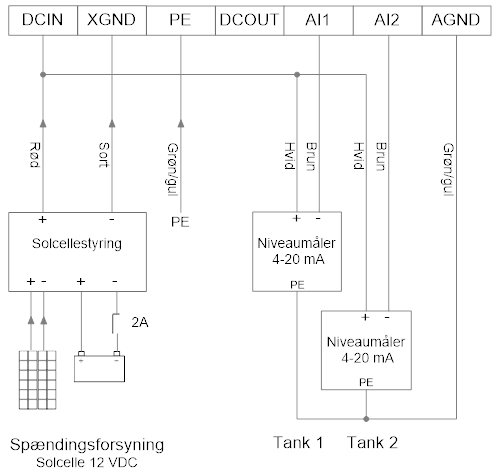

VikMoteController with built-in GSM and data logger. VX90 - Solar panel

Connection with solar panel.

• Connect the 12V power supply from the solar panel
• Connect the level meter from one or two tanks
• Install a fine fuse between the battery and the solar charge controller
