FlexGylle mounting for open tanks

Mounting of FlexGylle with bracket for open slurry tanks.

See wiring diagram for electrical connection.

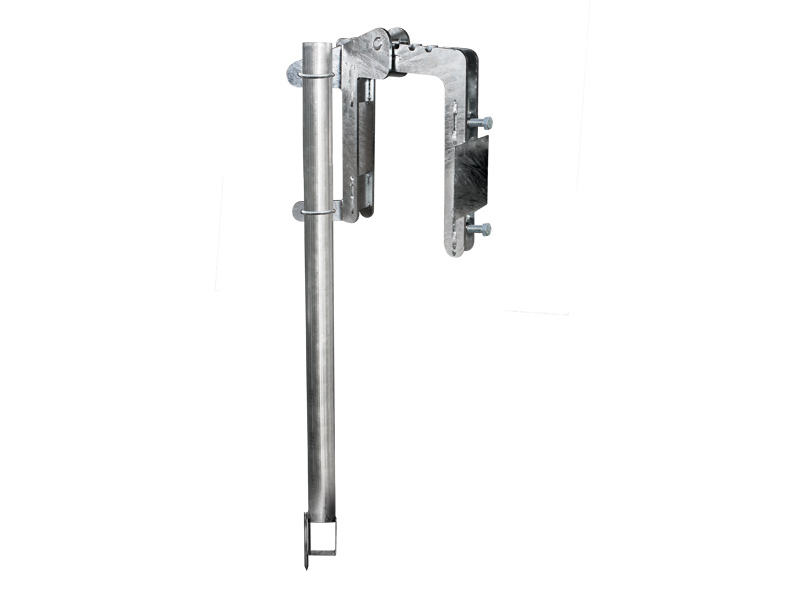

Measuring pipe assembly Assemble the measuring pipe as shown in the image: Place the pipe ends against each other Assemble the bracket around the pipe and tighten it

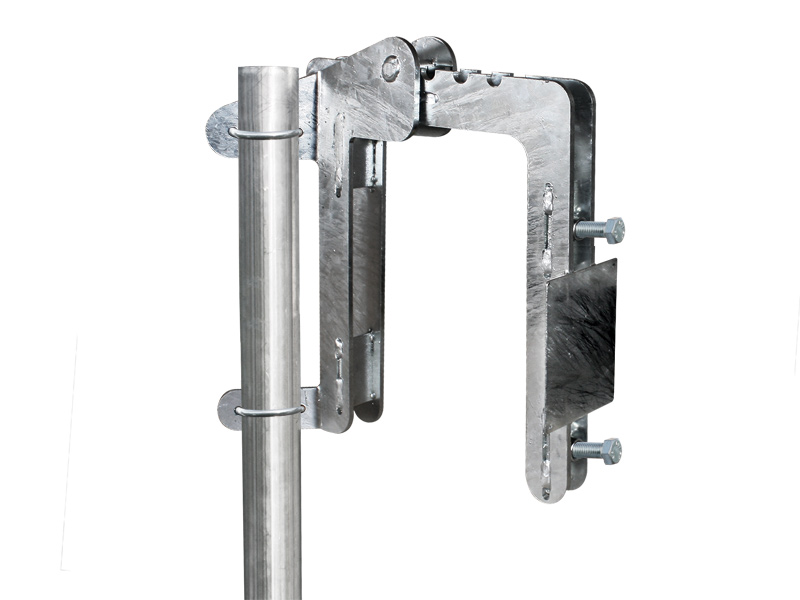

Bracket mounting Assemble the bracket as shown in the image: Pull the bracket and arms as close together as possible around the wall Tighten the two large outer bolts on the bracket until the bracket is securely attached On the left side of the bracket inside the tank, attach the measuring pipe with two U-bolts It is important that the tip of the pipe is driven firmly into the bottom of the tank
Pressure transmitter mounting Pressure transmitter is lowered into the pipe and attached as shown in the image: Lower the pressure transmitter into the pipe until it reaches the bottom of the pipe Pull the transmitter about 2 cm up so it hangs just above the bottom Attach the transmitter with the bracket as shown in the image Connect the transmitter to the GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. unit.

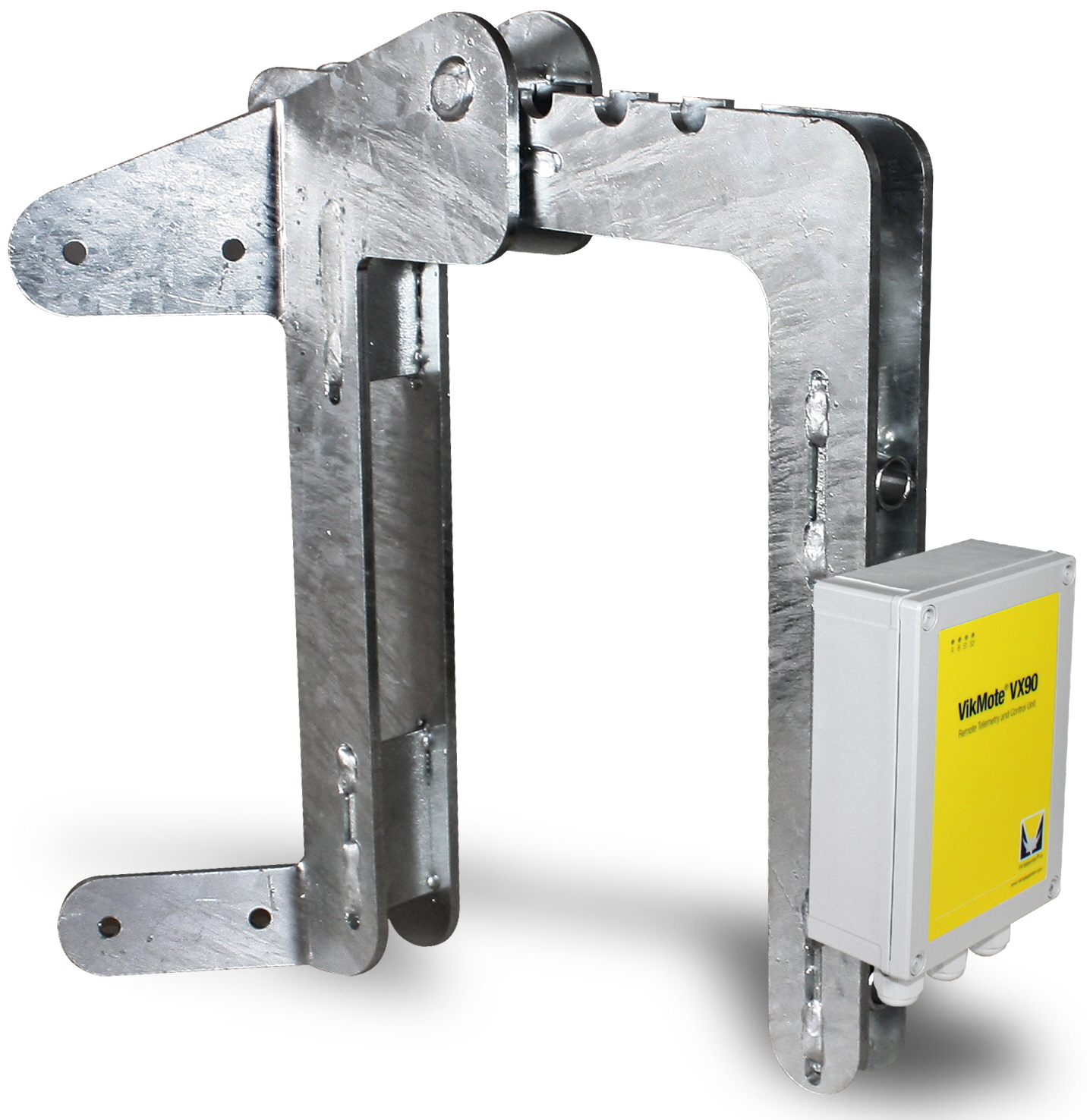

Mounting of GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. unit GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. unit is attached as shown in the image: Attach VikMoteController with built-in GSM and data logger. GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. unit on the outside of the bracket
Solar panel mounting If solar panel is used, the solar panel and electrical cabinet must be mounted as shown in the image. Attach the pipe on the right side of the bracket with two U-bolts Attach the top and bottom brackets to the solar panel Attach the solar panel to the pipe with two U-bolts Attach the top and bottom brackets to the electrical cabinet Attach the electrical cabinet to the pipe with two U-bolts Open the electrical cabinet and insert the battery
Battery mounting If solar panel is used, the battery must be installed as shown in the image. Insert the battery in the cabinet
