FlexGylle mounting for closed tanks

Bracket mounting

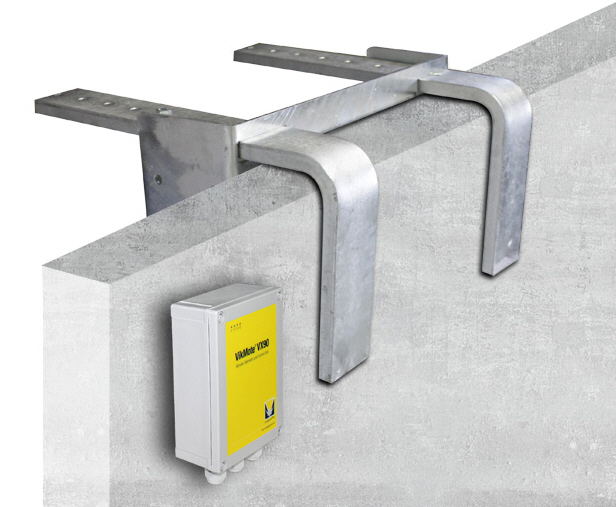

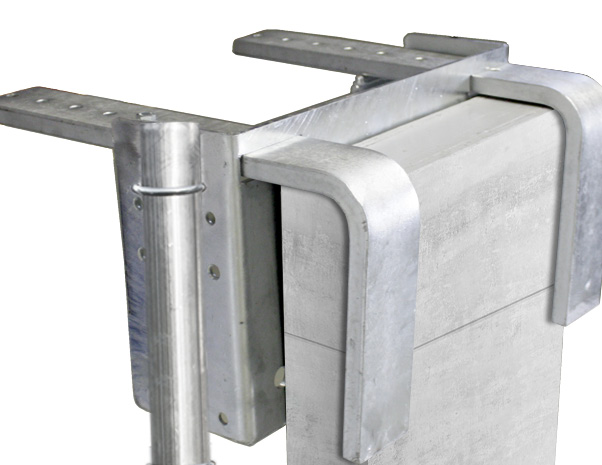

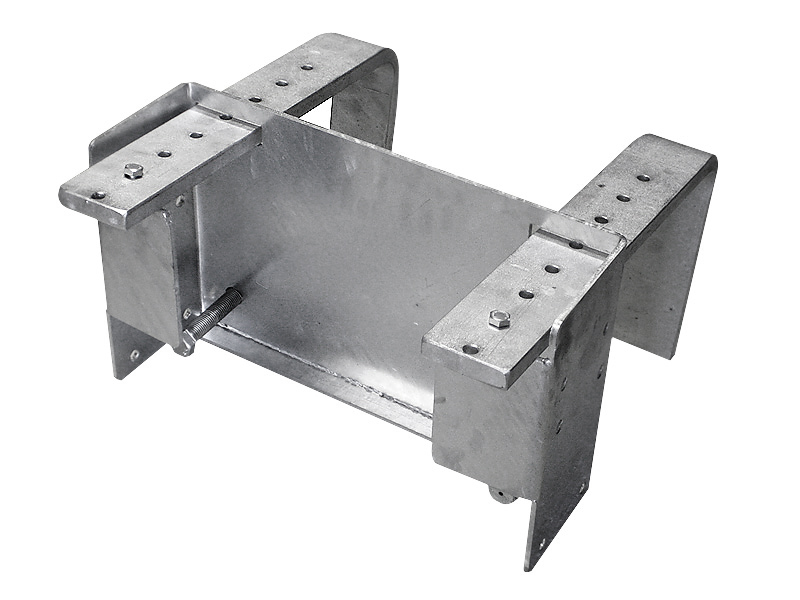

Assemble the bracket as shown in the image:

1. Pull the bracket and arms as close together as possible around the wall
2. Insert one bolt in each arm at the top on the inside to hold the bracket in place
3. Inside the tank, tighten the two large bolts until the bracket is securely attached

Measuring pipe mounting

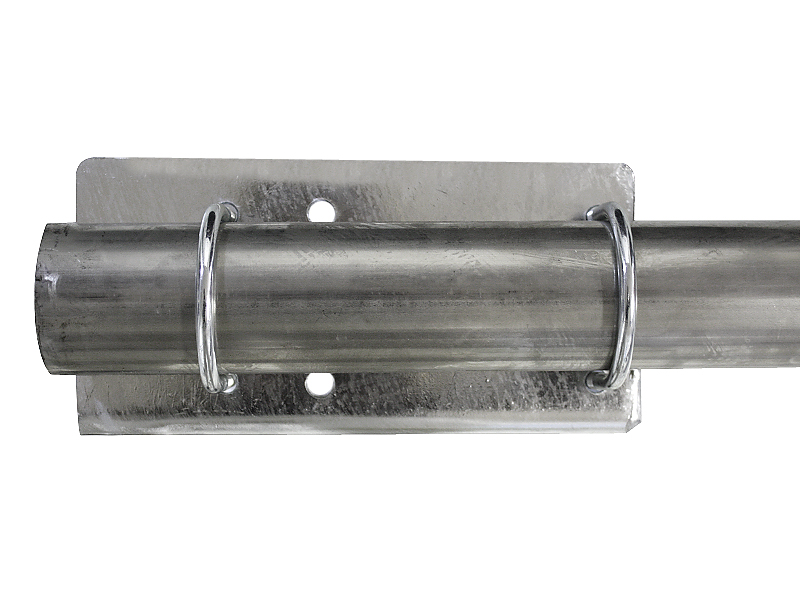

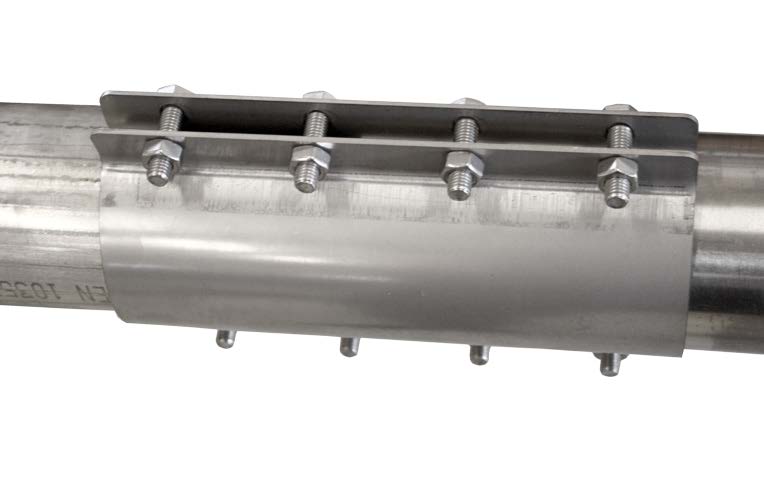

Attach the measuring pipe as shown in the image:

1. On the left side of the bracket, attach the measuring pipe with at least two U-bolts
   1. It is important that the tip of the pipe is driven firmly into the bottom of the tank

Pressure transmitter mounting

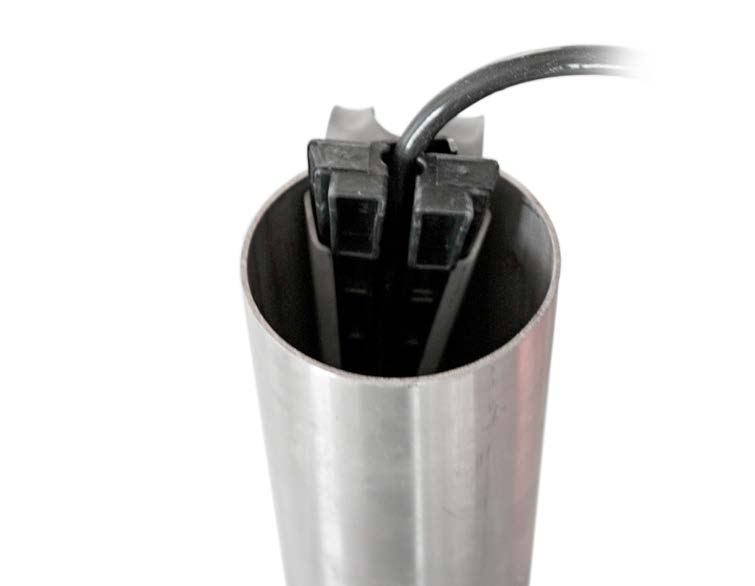

Pressure transmitter is lowered into the pipe and attached as shown in the image:

1. Lower the pressure transmitter into the pipe until it reaches the bottom of the pipe
2. Pull the transmitter about 2 cm up so it hangs just above the bottom
3. Attach the transmitter with the bracket as shown in the image
4. Connect the transmitter to the GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. unit.

If two tanks must be connected to the same GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. unit, mount the pressure transmitter from tank 2 in the same way.

Mounting of GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. unit

GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. unit is attached as shown in the image:

1. Attach VikMoteController with built-in GSM and data logger. GSMGSM (Global System for Mobile Communications) is a widely used standard for mobile communication and data. unit on the outside of the tank or another nearby location

Solar panel mounting

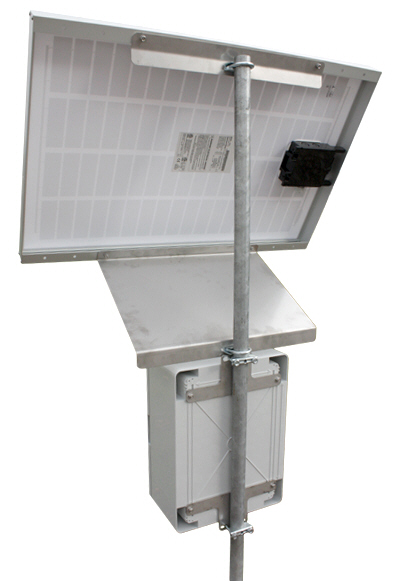

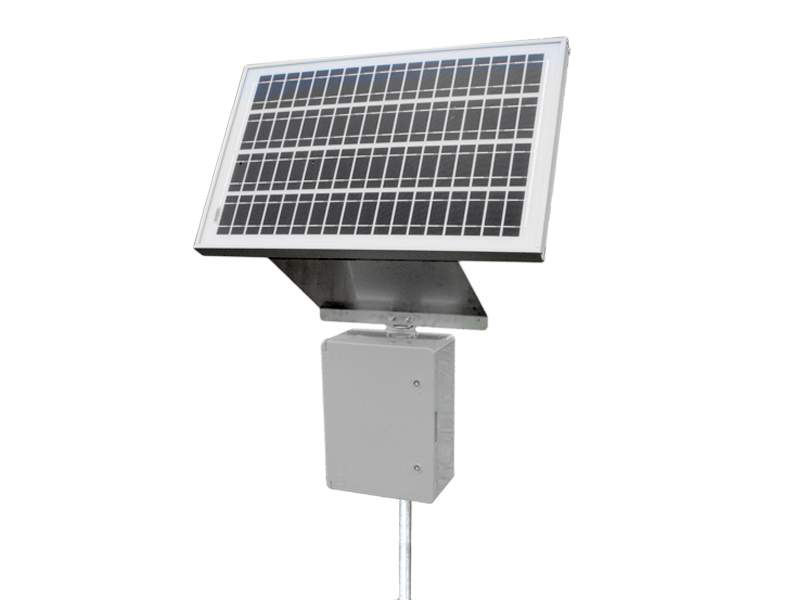

If solar panel is used, the solar panel and electrical cabinet must be assembled as shown in the image.

1. Attach the pipe on the outside of the tank or another nearby location (bracket not included)
   1. Alternatively, attach the pipe on the right side of the bracket inside the tank with two U-bolts (not included)
2. Attach the top and bottom brackets to the solar panel
3. Attach the solar panel to the pipe with two U-bolts
4. Attach the top and bottom brackets to the electrical cabinet
5. Attach the electrical cabinet to the pipe with two U-bolts
6. Open the electrical cabinet and insert the battery

Battery mounting

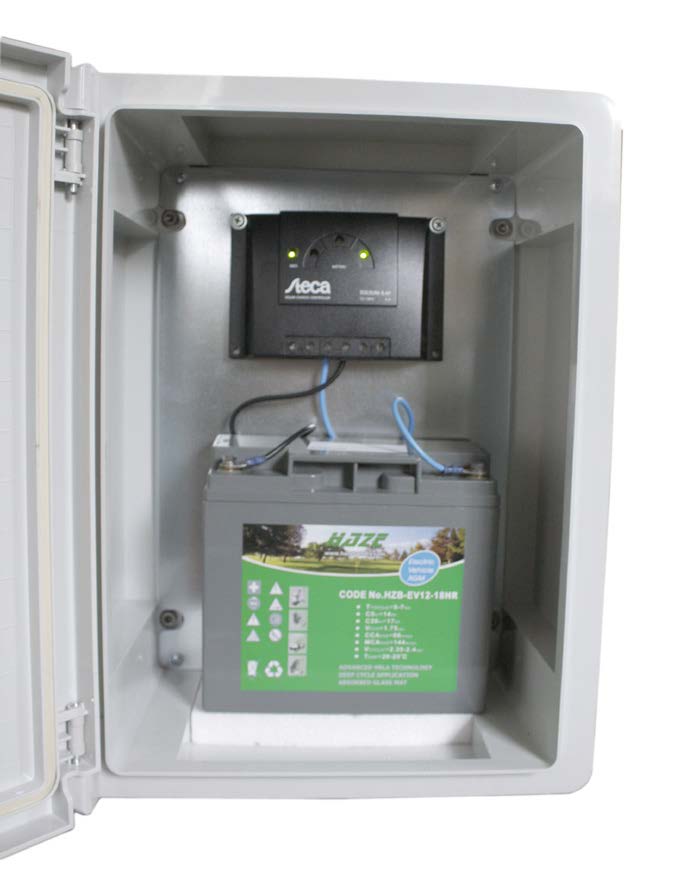

If solar panel is used, the battery must be installed as shown in the image.

1. Insert the battery in the cabinet
