OnSiteLight Models

The OnSiteLight series includes different models for lighting control.

Item	Type designation	Series	Model	Switching principle	LampsLampsNumber of lamps that can be controlled and dimmed	Local controlcontrolLocal control is available on the panel front for switching the lighting on and off	ConnectionConnectionConnection of the supply cable, optionally with loop-through wiring (//)	Output	Note	Image *

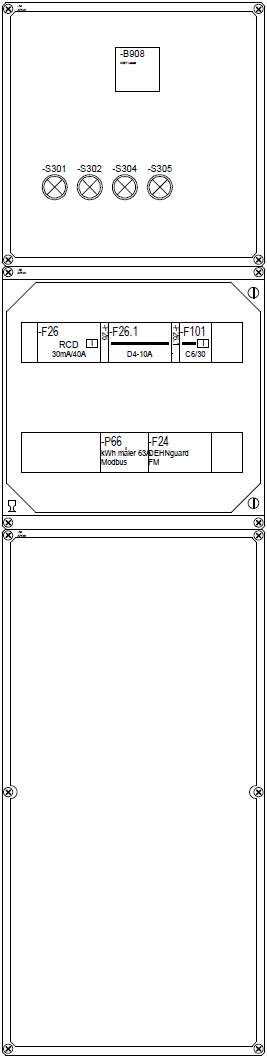

1004471	OSL 4000-5-1 /D MBO	MBO	Cabinet	Stepless	5	4 buttons	2 // 4x95 Alu and 2 // 1x95 Alu	DALIDALI (Digital Addressable Lighting Interface) is a standardized digital protocol for lighting control. bus and 5x1,5	Stand-alone equipmentEquipment such as a ServicePedestal or WaterStation.	See image here
1004544	OSL 4000-5-2 /D MBO	MBO	Cabinet		5	4 buttons	2 // 4x95 Alu and 2 // 1x95 Alu	DALIDALI (Digital Addressable Lighting Interface) is a standardized digital protocol for lighting control. bus and 5x1,5
	OSL 6000-8-1 /D MBO	MBO	Cabinet		8	option	1 x 4x50 Alu and 1 x 1x50 Alu	DALIDALI (Digital Addressable Lighting Interface) is a standardized digital protocol for lighting control. bus and 5x1,5
1004727	OSL 6000-8-2 /D MBO	MBO	Cabinet		8	option	2 // 4x50 Alu and 2 // 1x50 Alu	DALIDALI (Digital Addressable Lighting Interface) is a standardized digital protocol for lighting control. bus and 5x1,5
1005310	OSL 6000-12-1 /D MBO	MBO	Cabinet		12	4 buttons	2 // 4x50 Alu and 2 // 1x50 Alu	DALIDALI (Digital Addressable Lighting Interface) is a standardized digital protocol for lighting control. bus and 12x 3x1,5
	OSL 2400-4-1 /D MBO	MBO	Cabinet		4	option	2 // 4x50 Alu and 2 // 1x50 Alu	DALIDALI (Digital Addressable Lighting Interface) is a standardized digital protocol for lighting control. bus and 4x 3x1,5		-
	OSL 6000-8-2 /D MBO	MBO	Cabinet		4	option	2 // 4x50 Alu and 2 // 1x50 Alu	DALIDALI (Digital Addressable Lighting Interface) is a standardized digital protocol for lighting control. bus and 5x1,5		-
1005595	OSL 8000-8-1 /D MBO	MBO	Cabinet		8	option	2 // 4x70 Alu and 2 // 1x70 Alu	DALIDALI (Digital Addressable Lighting Interface) is a standardized digital protocol for lighting control. bus and 1x 5x1,5
1005597	OSL 16000-128-1 /D MBO	MBO	Cabinet		12	option	2 // 4x70 Alu and 2 // 1x70 Alu	DALIDALI (Digital Addressable Lighting Interface) is a standardized digital protocol for lighting control. bus and 2x 5x1,5

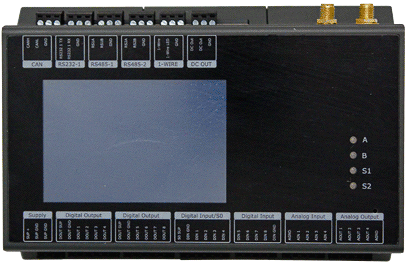

1004697	OSL NX400-1	VIK	Controller	Stepped	Up to 8	option	24VDC	-	For built-in installation
1004776	OSL NX400-1-D	VIK	Controller	Stepless and Stepped	Up to 16	option	24VDC	-

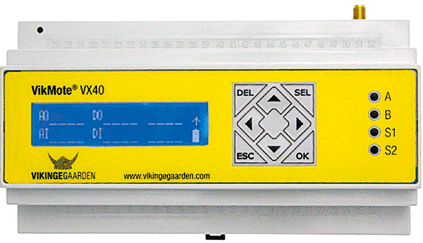

1004752	OSL VX40-1	VIK	Controller	Stepped	Up to 8	option	24VDC	-

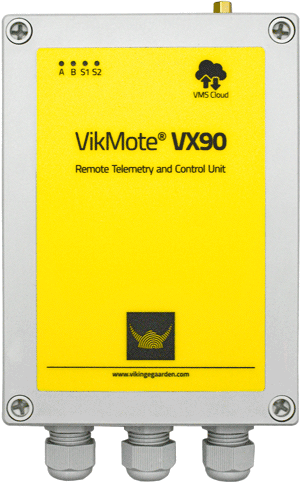

1004777	OSL-NX910-1	VIK	Controller	Stepped	Up to 4	option	24VDC / 230VAC	-	Wall mounting/built-in installation

* Images may show optional equipment.
