Models

Item	Type designation	Series	Model	Connection	Outlet	Note	Image *

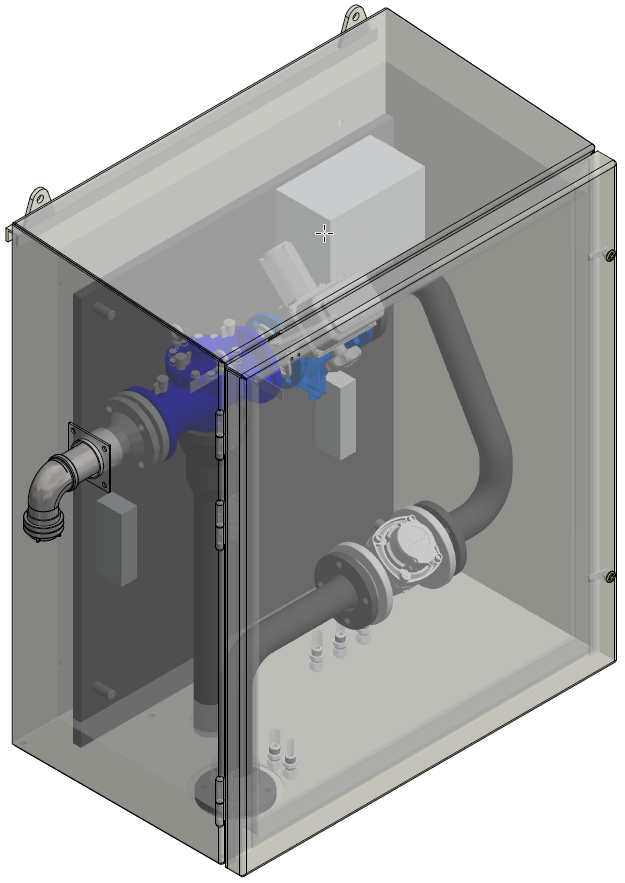

1004410	WAS DN80-1 SEP /S TIN	TIN	Cabinet	1xDN65	1xStorz B coupling 2½"	Must be connected to a ServicePedestal
1004429	WAS DN65-1 SEP /S MBO	MBO	Cabinet	1xDN65	1xStorz B coupling 2½"	Must be connected to a ServicePedestal
1004404	WAS DN80-1 SEP /B TIN	TIN	Cabinet	1xDN80	1xStorz B coupling 3"	Must be connected to a ServicePedestal

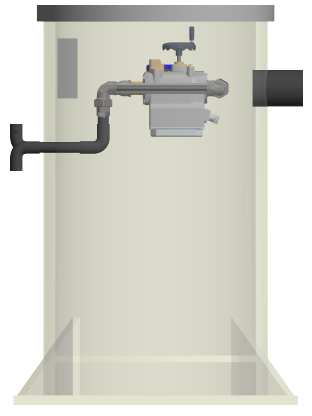

1005340	WAS DN32-1 SA /B	tin	Well	1xDN32 (1¼"/Ø40)	1xDN32 (1¼"/Ø40)	Stand-alone equipmentEquipment such as a ServicePedestal or WaterStation.

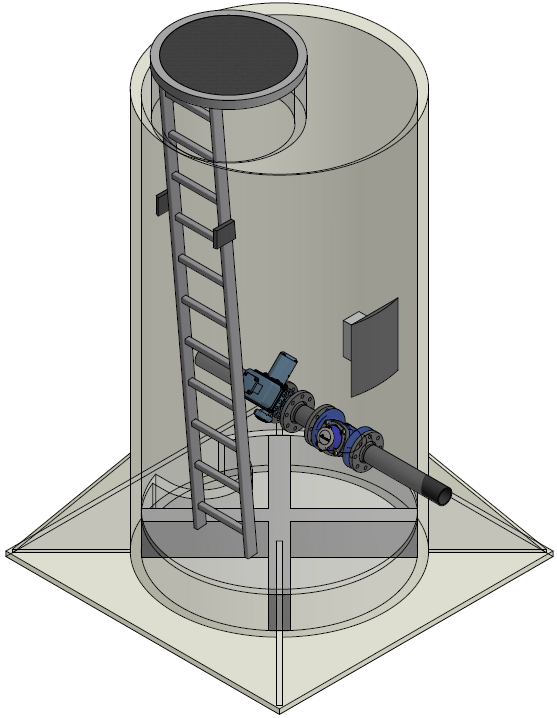

1004327	WAS DN80-1 SEP /B TIN	TIN	Well	1xDN80	1xDN80	Must be connected to a ServicePedestal
1004328	WAS DN80-1 SA /B TIN	TIN	Well	1xDN80	1xDN80	Stand-alone equipmentEquipment such as a ServicePedestal or WaterStation.

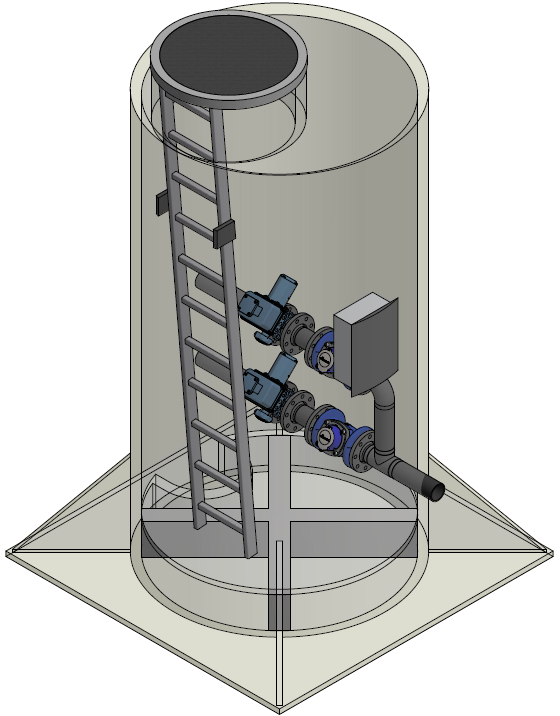

1004329	WAS DN80-2 SA /B TIN	TIN	Well	1xDN80	2xDN80	Stand-alone equipmentEquipment such as a ServicePedestal or WaterStation.
1004330	WAS DN80-3 SA /B TIN	TIN	Well	1xDN100	3xDN80	Stand-alone equipmentEquipment such as a ServicePedestal or WaterStation.
	WAS DN80-3 SA /B /H TIN	TIN	Well	1xDN100	3xDN80	Stand-alone equipmentEquipment such as a ServicePedestal or WaterStation.

* Images may show optional equipment, for example a TBSBackflow prevention valve that prevents water from flowing back into the waterworks supply line and helps protect drinking water from contamination. valve
